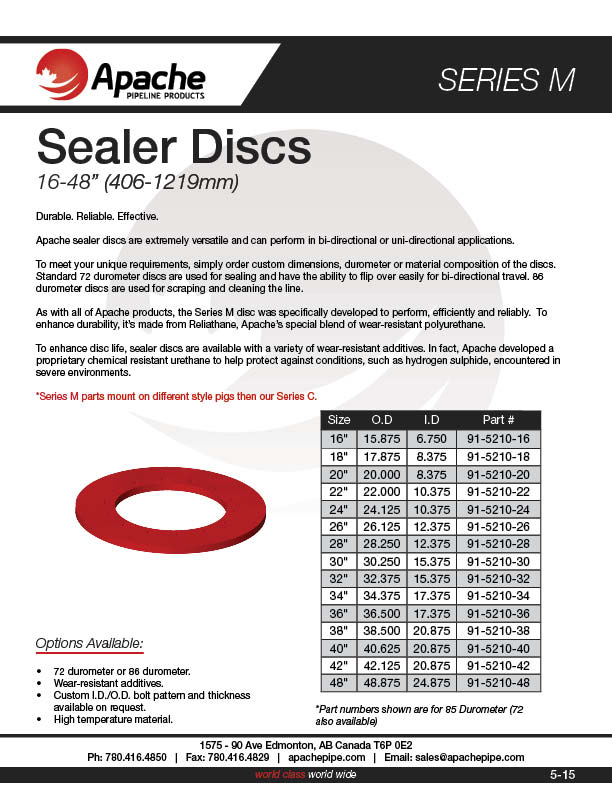

M: SEALER DISCS
(16-48″)

C SEALER DISC-B-24R pipeline pig apache pipeline products

Durable. Reliable. Effective.

Apache sealer discs are extremely versatile and can perform in bi-directional or uni-directional applications.
To meet your unique requirements, simply order custom dimensions, durometer or material composition of the discs.
Standard 72 durometer discs are used for sealing and have the ability to flip over easily for bi-directional travel. 86
durometer discs are used for scraping and cleaning the line.
As with all of Apache products, the Series M disc was specifically developed to perform, efficiently and reliably. To
enhance durability, it’s made from Reliathane, Apache’s special blend of wear-resistant polyurethane.
To enhance disc life, sealer discs are available with a variety of wear-resistant additives. In fact, Apache developed a
proprietary chemical resistant urethane to help protect against conditions, such as hydrogen sulphide, encountered
in severe environments.

*Series M parts mount on different style pigs then our Series C.

*Part numbers shown are for 85 Durometer (72 also available)

SIZE O.D. I.D. WEIGHT PART NUMBER
16" 15.875 6.750 5.1 91-5210-16
18" 17.875 8.375 6.4 91-5210-18
20" 20.000 8.375 9.7 91-5210-20
22" 22.000 10.375 11 91-5210-22
24" 24.125 10.375 16 91-5210-24
26" 26.125 12.375 18 91-5210-26
28" 28.250 12.375 25 91-5210-28
30" 30.250 15.375 26 91-5210-30
32" 32.375 15.375 34 91-5210-32
34" 34.375 17.375 37 91-5210-34
36" 36.500 17.375 44 91-5210-36
38" 38.500 20.875 44 91-5210-38
40" 40.625 20.875 51 91-5210-40
42" 42.125 20.875 64 91-5210-42
48" 48.875 24.875 90 91-5210-48

Options Available:

  • 72 durometer or 86 durometer.
  • Wear-resistant additives.
  • Custom I.D./O.D. bolt pattern and thickness available on request.
  • High temperature material.
