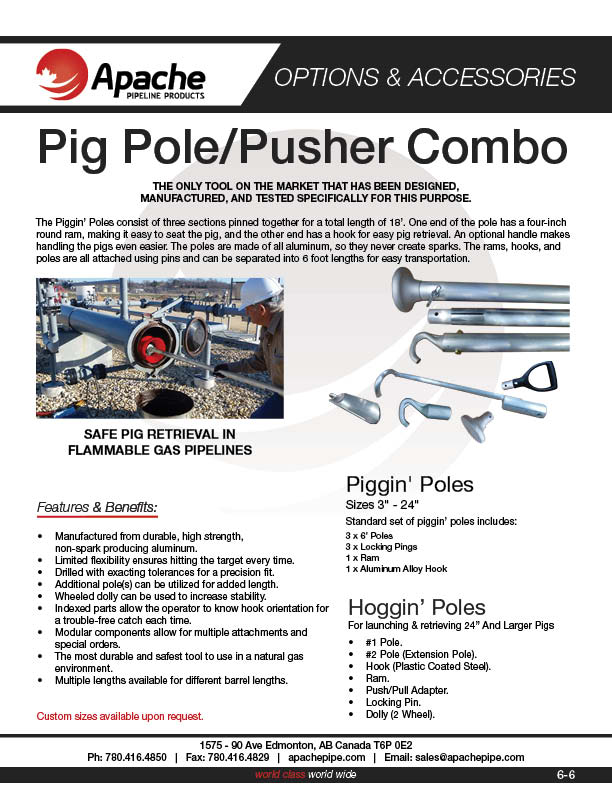

PIG POLE/PUSHER COMBO

Pig-Poles pipeline pig apache pipeline products

THE ONLY TOOL ON THE MARKET THAT HAS BEEN DESIGNED,
MANUFACTURED, AND TESTED SPECIFICALLY FOR THIS PURPOSE.

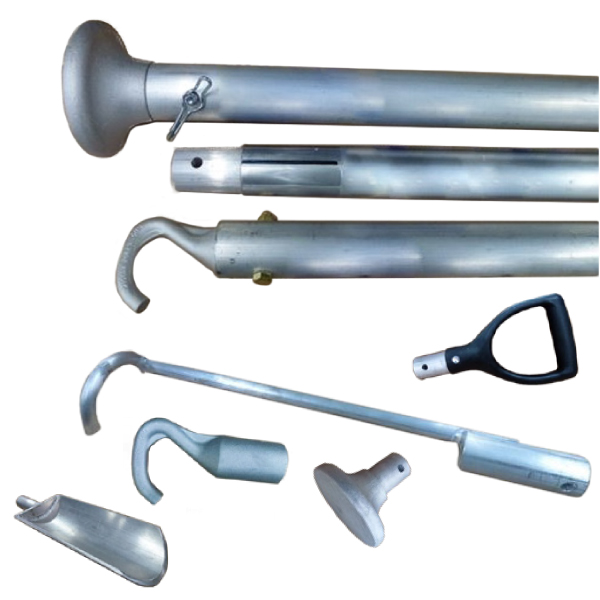

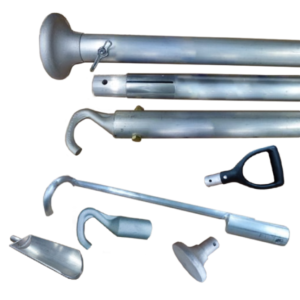

The Pigging Poles consist of three sections pinned together for a total length of 18’. One end of the pole
has a four-inch round ram, making it easy to seat the pig, and the other end has a hook for easy pig
retrieval. An optional handle makes handling the pigs even easier. The poles are made of all aluminum, so
they never create sparks. The rams, hooks, and poles are all attached using pins and can be separated
into 6 foot lengths for easy transportation.

STANDARD SET OF PIGGING POLES INCLUDES:
3 x 6′ Poles
3 x Locking Pins
1 x Ram
1 x Aluminum Alloy Hook

HOGGING POLES: For launching & retrieving 24″ and larger pigs

#1 Pole
#2 Pole (extension pole)
Hook (plastic coated steel)
Ram
Push/Pull Adapter
Locking Pin
Dolly (2 wheel)

Custom sizes available upon request.

Features & Benefits:

  • Manufactured from durable, high strength, non-spark producing aluminum
  • Limited flexibility ensures hitting the target every time
  • Drilled with exacting tolerances for a precision fit
  • Additional pole(s) can be utilized for added length
  • Wheeled dolly can be used to increase stability
  • Indexed parts allow the operator to know hook orientation for a trouble-free catch each time
  • Modular components allow for multiple attachments and special orders
  • The most durable and safest tool to use in a natural gas environment
  • Multiple lengths available for different barrel lengths
