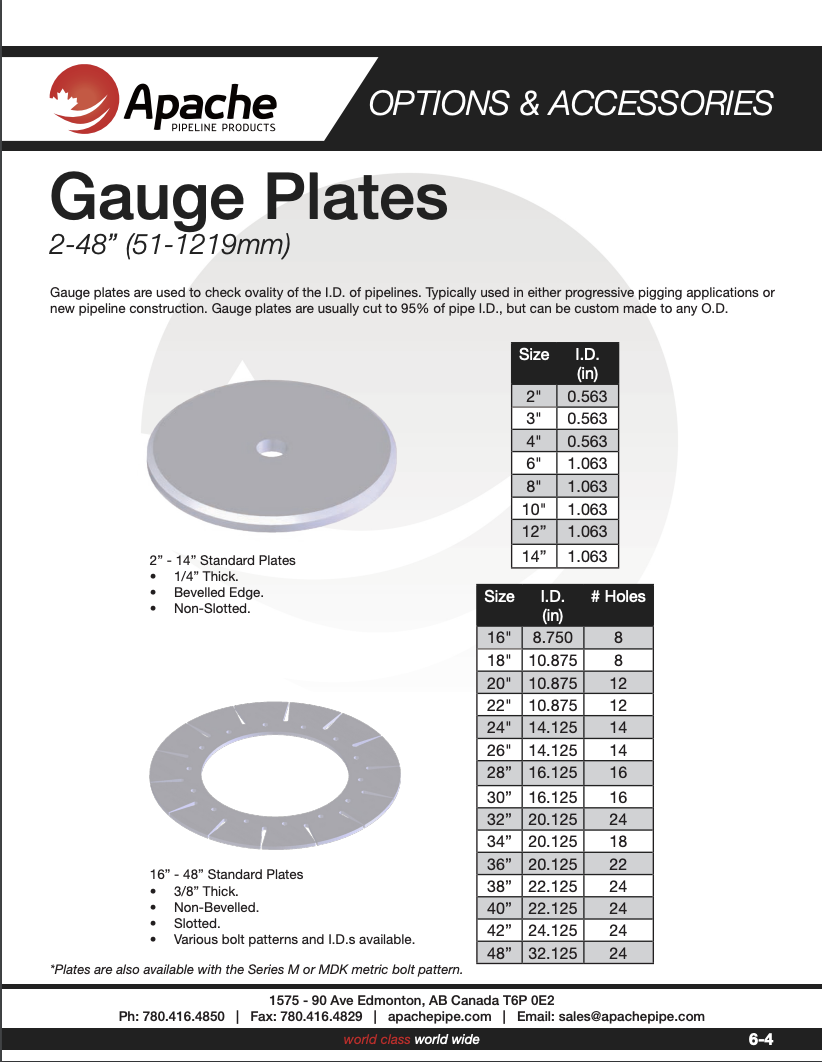

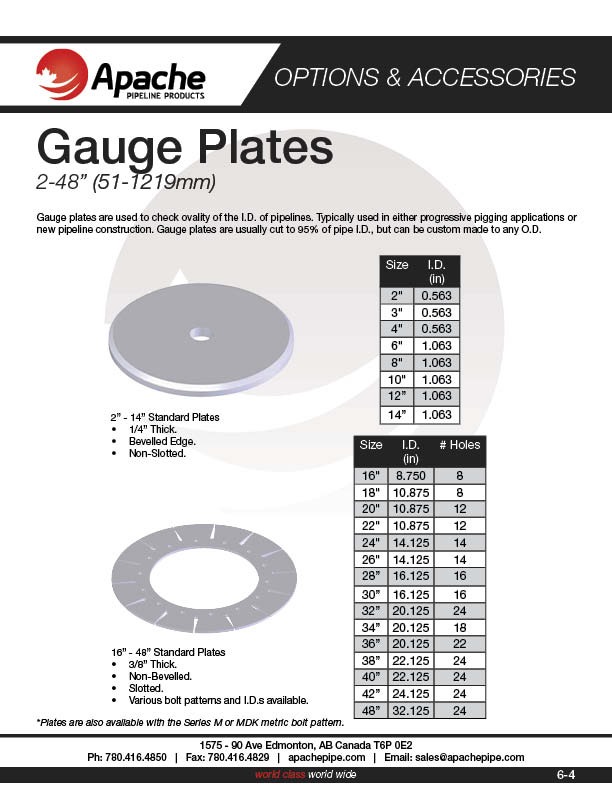

GAUGE PLATES (2-48″)
Gauge plates are used to check ovality of the I.D. of pipelines. Typically used in either progressive pigging
applications or new pipeline construction. Gauge plates are usually cut to 95% of pipe I.D., but can be custom made
to any O.D.

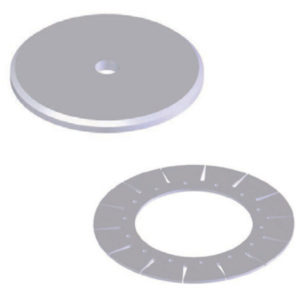

2” – 14” Standard Plates
• 1/4” Thick
• Bevelled Edge
• Non-Slotted
16” – 48” Standard Plates
• 3/8” Thick
• Non-Bevelled
• Slotted
| SIZE | I.D. | WEIGHT | # HOLES |
|---|---|---|---|
| 2" | 0.563 | 0.1 | n/a |
| 3" | 0.563 | 0.2 | n/a |
| 4" | 0.563 | 0.4 | n/a |
| 6" | 1.063 | 0.8 | n/a |
| 8" | 1.063 | 1.3 | n/a |
| 10" | 1.063 | 2.0 | n/a |
| 12" | 1.063 | 2.8 | n/a |
| 14" | 1.063 | 4.0 | n/a |
| 16" | 8.750 | 11.00 | 8 |
| 18" | 10.875 | 12.75 | 8 |
| 20" | 10.875 | 13.50 | 12 |
| 22" | 10.875 | 13.50 | 12 |
| 24" | 14.125 | 16.50 | 14 |
| 26" | 14.125 | 16.50 | 14 |
| 28" | 16.125 | 19.50 | 16 |
| 30" | 16.125 | 19.50 | 16 |
| 32" | 20.125 | 24.00 | 24 |
| 34" | 20.125 | 23.00 | 18 |
| 36" | 20.125 | 25.00 | 22 |
| 38" | 22.125 | 27.00 | 24 |
| 40" | 22.125 | 26.00 | 24 |
| 42" | 24.125 | 30.00 | 24 |
| 48" | 32.125 | 36.00 | 24 |
