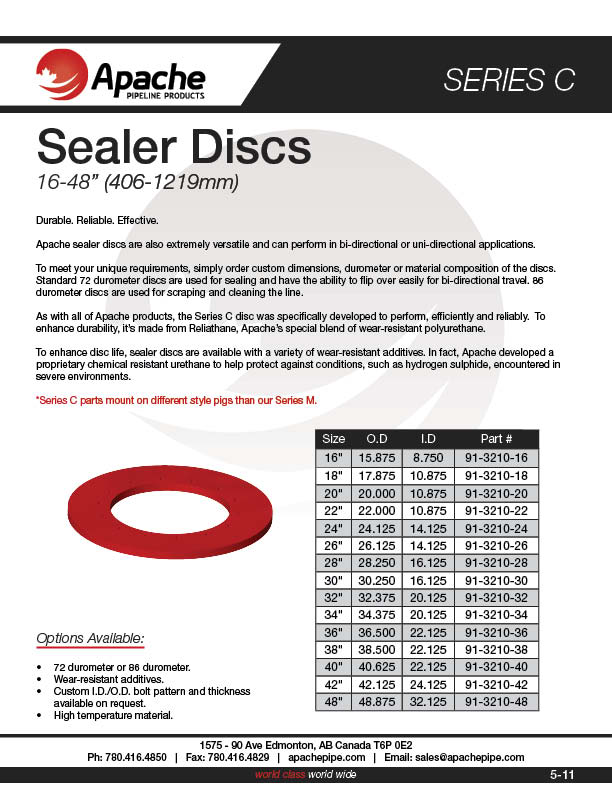

C: SEALER DISCS
(16-48″)

C SEALER DISC-B-24R pipeline pig apache pipeline products

Durable. Reliable. Effective.

Apache sealer discs are also extremely versatile and can perform in bi-directional or uni-directional applications.
To meet your unique requirements, simply order custom dimensions, durometer or material composition of the discs.
Standard 72 durometer discs are used for sealing and have the ability to flip over easily for bi-directional travel. 86
durometer discs are used for scraping and cleaning the line.
As with all of Apache products, the Series C disc was specifically developed to perform, efficiently and reliably. To
enhance durability, it’s made from Reliathane, Apache’s special blend of wear-resistant polyurethane.
To enhance disc life, sealer discs are available with a variety of wear-resistant additives. In fact, Apache developed a
proprietary chemical resistant urethane to help protect against conditions, such as hydrogen sulphide, encountered
in severe environments.

*Series C parts mount on different style pigs than our Series M.

SIZE O.D. I.D. WEIGHT PART NUMBER
16" 15.875 8.750 4.5 91-3210-16
18" 17.875 10.875 5.2 91-3210-18
20" 20.000 10.875 8.4 91-3210-20
22" 22.000 10.875 11 91-3210-22
24" 24.125 14.125 13 91-3210-24
26" 26.125 14.125 17 91-3210-26
28" 28.250 16.125 21 91-3210-28
30" 30.250 16.125 25 91-3210-30
32" 32.375 20.125 27 91-3210-32
34" 34.375 20.125 33 91-3210-34
36" 36.500 22.125 40 91-3210-36
38" 38.500 22.125 47 91-3210-38
40" 40.625 22.125 54 91-3210-40
42" 42.125 24.125 63 91-3210-42
48" 48.875 32.125 81 91-3210-48

Options Available:

  • 72 durometer or 86 durometer.
  • Wear-resistant additives.
  • Custom I.D./O.D. bolt pattern and thickness available on request.
  • High temperature material.
