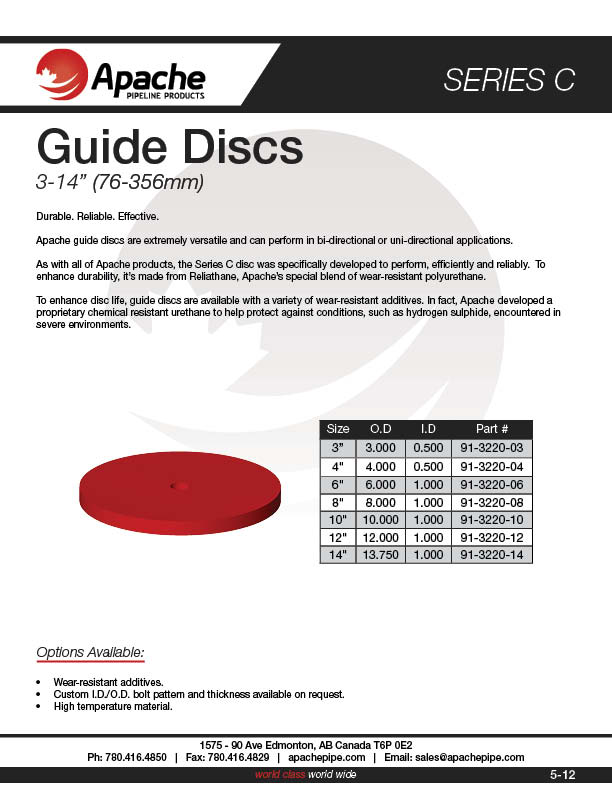

C: GUIDE DISCS
(3-14″)

C GUIDE DISC-B-10 pipeline pig apache pipeline products

Durable. Reliable. Effective.

Apache guide discs are extremely versatile and can perform in bi-directional or uni-directional applications.
As with all of Apache products, the Series C disc was specifically developed to perform, efficiently and reliably. To
enhance durability, it’s made from Reliathane, Apache’s special blend of wear-resistant polyurethane.
To enhance disc life, guide discs are available with a variety of wear-resistant additives. In fact, Apache developed a
proprietary chemical resistant urethane to help protect against conditions, such as hydrogen sulphide, encountered
in severe environments.

*Series C parts mount on different style pigs then our Series M.

SIZE O.D. I.D. WEIGHT PART NUMBER
3" 3.000 0.500 0.1 91-3220-03
4" 4.000 0.500 0.2 91-3220-04
6" 6.000 1.000 0.7 91-3220-06
8" 8.000 1.000 1.6 91-3220-08
10" 10.000 1.000 2.5 91-3220-10
12" 12.000 1.000 4.2 91-3220-12
14" 13.750 1.000 5.2 91-3220-14

Options Available:

  • Wear-resistant additives.
  • Custom I.D./O.D. bolt pattern and thickness available on request.
  • High temperature material.
