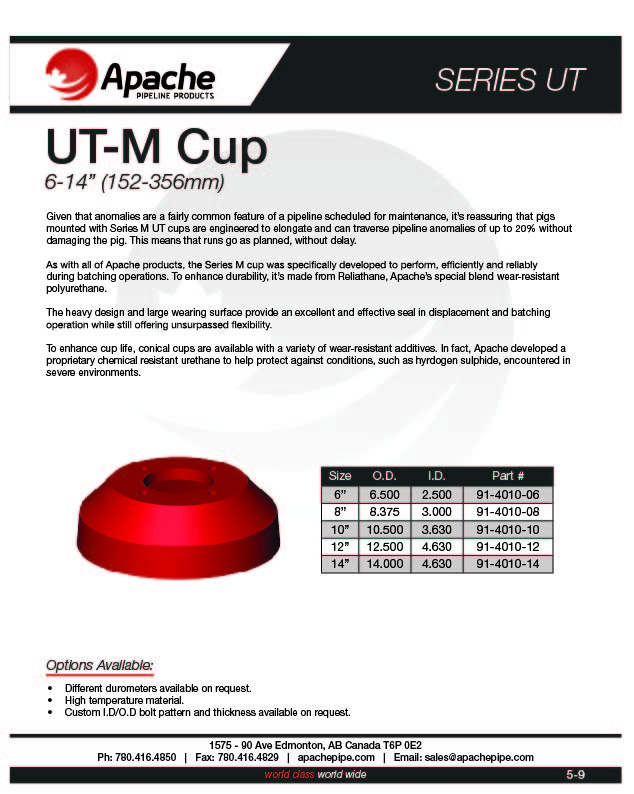

UT-M Cup
(6-14″)

Given that anomalies are a fairly common feature of a pipeline, it’s reassuring that pigs mounted with Series M UT cups are engineered to elongate and can traverse pipeline anomalies of up to 20% without damaging the pig. This means that runs go as planned, without delay.

To enhance the cup life, conical cups are available with a variety of wear-resistant additives. In fact, Apache developed a proprietary chemical resistant urethane to help protect against conditions, such as hydrogen sulphide, encountered in severe environments.

SIZE O.D. I.D. PART NUMBER
6" 6.500 2.500 91-4010-06
8" 8.375 3.000 91-4010-08
10" 10.500 3.630 91-4010-10
12" 12.500 4.630 91-4010-12
14" 14.000 4.630 91-4010-14

Options Available:

  • Different durometers available on request.
  • High temperature material.
  • Custom I.D/O.D bolt pattern and thickness available on request.
