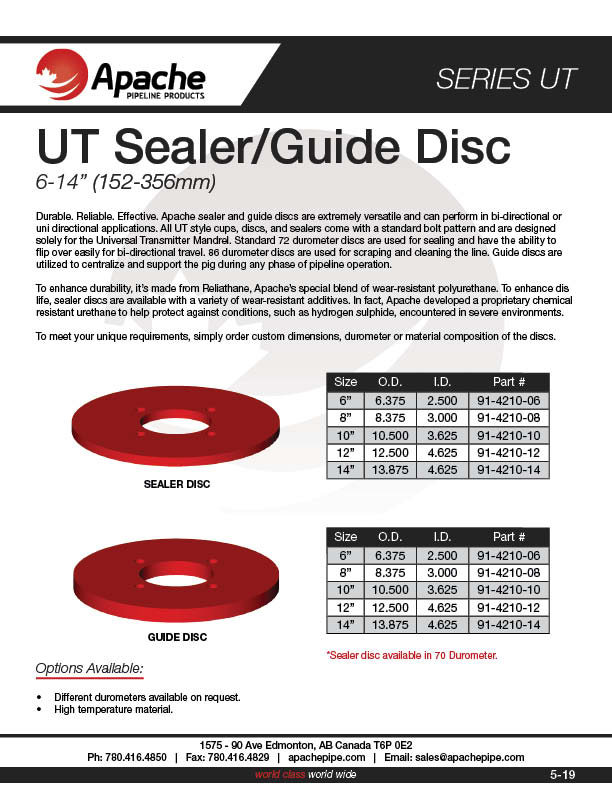

UT: GUIDE DISC
(6-14″)
Durable. Reliable. Effective. Apache guide discs are extremely versatile and can perform in bi-directional or unidirectional
applications. All UT-style cups, discs, and sealers come with a standard bolt pattern and are designed
solely for the Universal Transmitter Mandrel. Standard 72 durometer discs are used for sealing and have the ability to
flip over easily for bi-directional travel. 86 durometer discs are used for scraping and cleaning the line. Guide discs
are utilized to centralize and support the pig during any phase of pipeline operation.
To meet your unique requirements, simply order custom dimensions, durometer or material composition of the discs.
*These parts are to be used on the Universal Transmitter Mandrel.
| SIZE | O.D. | I.D. | WEIGHT | PART NUMBER |
|---|---|---|---|---|
| 6" | 6.000 | 2.500 | 0.6 | 91-4220-06 |
| 8" | 8.000 | 3.000 | 1.3 | 91-4220-08 |
| 10" | 10.000 | 3.625 | 2.4 | 91-4220-10 |
| 12" | 12.000 | 4.625 | 4.0 | 91-4220-14 |
| 14" | 213.750 | 4.625 | 2.0 | 91-4220-14 |
