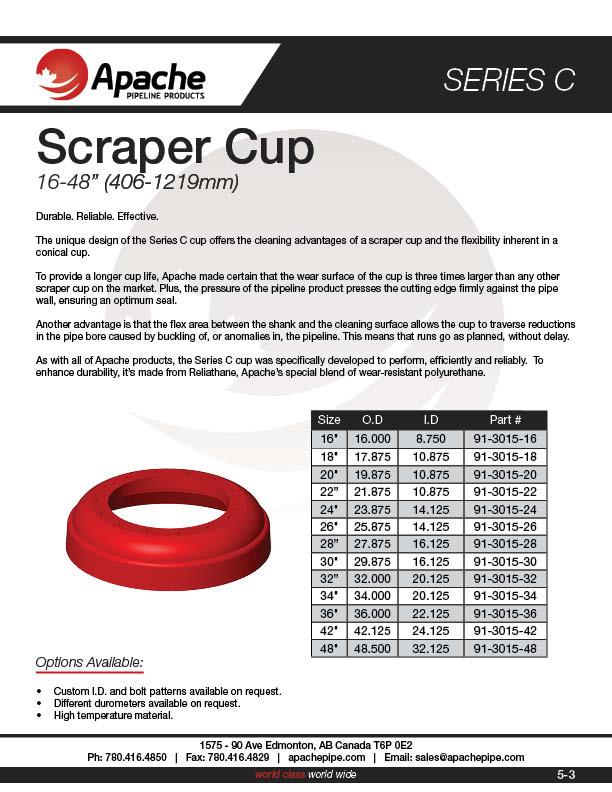

SCRAPER CUP
(16-48″)

C CUP-B-24 pipeline pig apache pipeline products

Durable. Reliable. Effective.

The unique design of the Series C Cup offers the cleaning advantages of a scraper cup and the flexibility inherent in
a conical cup.
To provide a longer cup life, Apache made certain that the wear surface of the cup is three times larger than any
other scraper cup on the market. Plus, the pressure of the pipeline product presses the cutting edge firmly against
the pipe wall, ensuring an optimum seal.
Another advantage is that the flex area between the shank and the cleaning surface allows the cup to traverse
reductions in the pipe bore caused by buckling of, or anomalies in, the pipeline. This means that runs go as planned,
without delay.
As with all of Apache products, the Series C cup was specifically developed to perform, efficiently and reliably. To
enhance durability, it’s made from Reliathane, Apache’s special blend of wear-resistant polyurethane.

SIZE O.D. I.D. WEIGHT PART NUMBER
16" 16.000 8.750 8.9 91-3015-16
18" 17.875 10.875 11 91-3015-20
20" 19.875 10.875 11 91-3015-20
22" 21.875 10.875 25 91-3015-22
24" 23.875 14.125 30 91-3015-24
26" 25.875 14.125 37 91-3015-26
28" 27.875 16.125 43 91-3015-28
30" 29.875 16.125 50 91-3015-30
32" 32.000 20.125 52 91-3015-32
34" 34.000 20.125 69 91-3015-34
36" 36.000 22.125 74 91-3015-36
42" 42.125 24.125 117 91-3015-42
48" 48.500 32.125 156 91-3015-48

Options Available:

  • Custom I.D. and bolt patterns available on request.
  • Different durometers available on request.
  • High temperature material.
