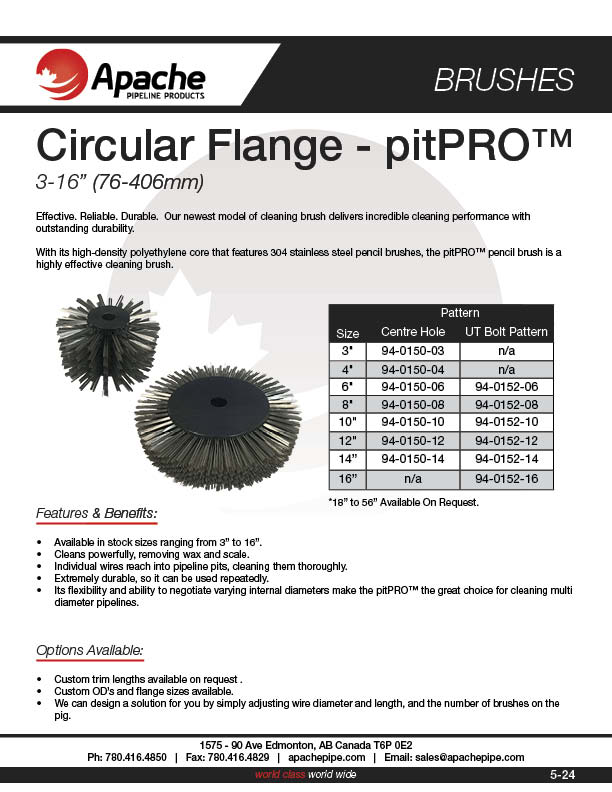

CIRCULAR FLANGE – pitPRO™ (3-16″)

Integrity brush pipeline pig apache pipeline products

Effective. Reliable. Durable. Our newest model of cleaning brush delivers incredible cleaning performance with
outstanding durability.

With its high-density polyethylene core that features 304 stainless steel pencil brushes, the pitPRO™ pencil brush is
a highly effective cleaning brush.

*18” to 56” Available On Request

SIZE PATTERN: CENTRE HOLE PATTERN: BOLT PATTERN
3" 94-0150-03 n/a
4" 94-0150-04 n/a
6" 94-0150-06 94-0152-06
8" 94-0150-08 94-0152-08
10" 94-0150-10 94-0152-10
12" 94-0150-12 94-0152-12
14" 94-0150-14 94-0152-14
16" n/a 94-0152-16

Features & Benefits:

  • Available in stock sizes ranging from 3” to 16”.
  • Cleans powerfully, removing wax and scale.
  • Individual wires reach into pipeline pits, cleaning them thoroughly.
  • Extremely durable, so it can be used repeatedly.
  • Its flexibility and ability to negotiate varying internal diameters make the pitPRO™ the great choice for cleaning multi diameter pipelines.

Options Available:

  • Custom trim lengths available on request .
  • Custom OD’s and flange sizes available.
  • We can design a solution for you by simply adjusting wire diameter and length, and the number of brushes on the pig.
