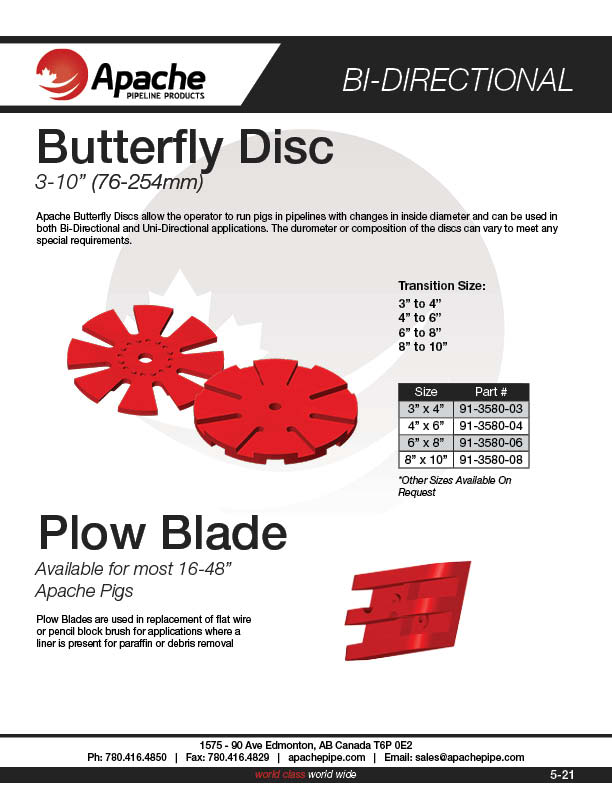

BUTTERFLY DISC
(3-10″)

butterfly-disc-2 pipeline pig apache pipeline products

Apache Butterfly Discs allow the operator to run pigs in pipelines with changes in inside
diameter and can be used in both Bi-Directional and Uni-Directional applications. The
durometer or composition of the discs can vary to meet any special requirements.

Transition Size:
3″ – 4″
4″ – 6″
6″ – 8″
8″ – 10″

*Other Sizes Available On Request

SIZE PART NUMBER
3" X 4" 91-3580-03
4" x 6" 91-3580-04
6" x 8" 91-3580-06
8" x 10" 91-3580-08
