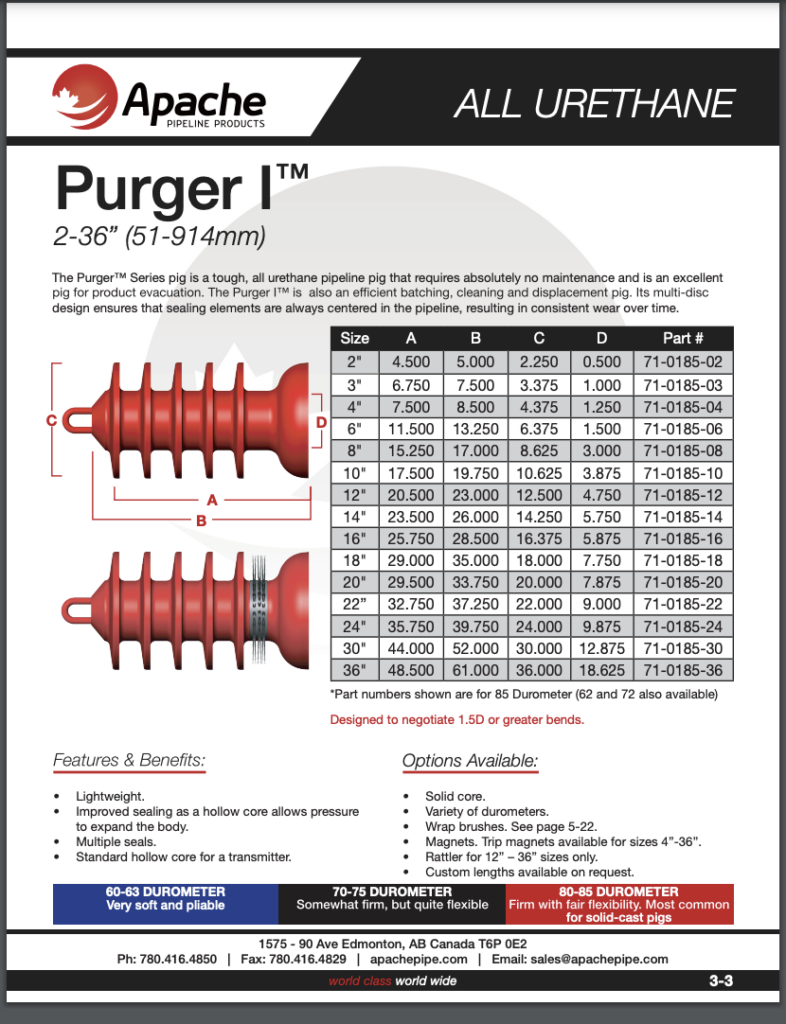

The Purger™ Series pig is a tough, all urethane pipeline pig that requires absolutely no maintenance and is an excellent pig for product evacuation. The Purger I ™ is also an efficient batching, cleaning and displacement pig. Its multi-disc design ensures that sealing elements are always centered in the pipeline, resulting in consistent wear over time.
Designed to negotiate 1.5D or greater bends.

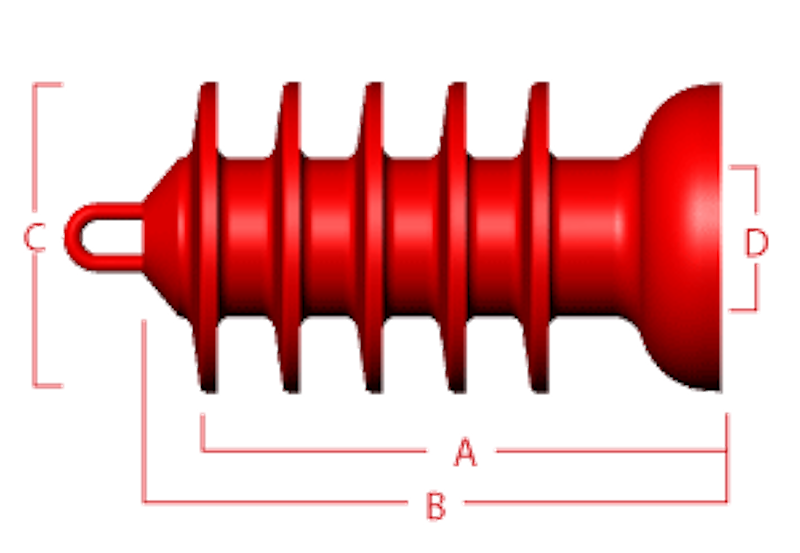

| SIZE | A | B | C | D | Part Number |
| 2" | 4.500 | 5.000 | 2.250 | 0.500 | 71018502 |
| 3" | 6.750 | 7.500 | 3.375 | 1.000 | 71018503 |
| 4" | 7.500 | 8.500 | 4.375 | 1.250 | 71018504 |
| 6" | 11.500 | 13.250 | 6.375 | 1.500 | 71018506 |
| 8" | 15.250 | 17.000 | 8.625 | 3.000 | 71018508 |
| 10" | 17.500 | 19.750 | 10.625 | 3.875 | 71018510 |
| 12" | 20.500 | 23.000 | 12.500 | 4.750 | 71018512 |
| 14" | 23.500 | 26.000 | 14.250 | 5.750 | 71018514 |
| 16" | 25.750 | 28.500 | 16.375 | 5.875 | 71018516 |
| 18" | 39.000 | 35.000 | 16.000 | 7.750 | 71018518 |
| 20" | 30.500 | 33.750 | 20.000 | 7.875 | 71018520 |
| 22" | 32.750 | 37.350 | 22.000 | 9.000 | 71018522 |
| 24" | 35.750 | 39.750 | 24.000 | 9.875 | 71018524 |
| 30" | 44.000 | 52.000 | 30.000 | 12.875 | 71018530 |
| 36" | 48.500 | 61.000 | 36.000 | 18.625 | 71018536 |
