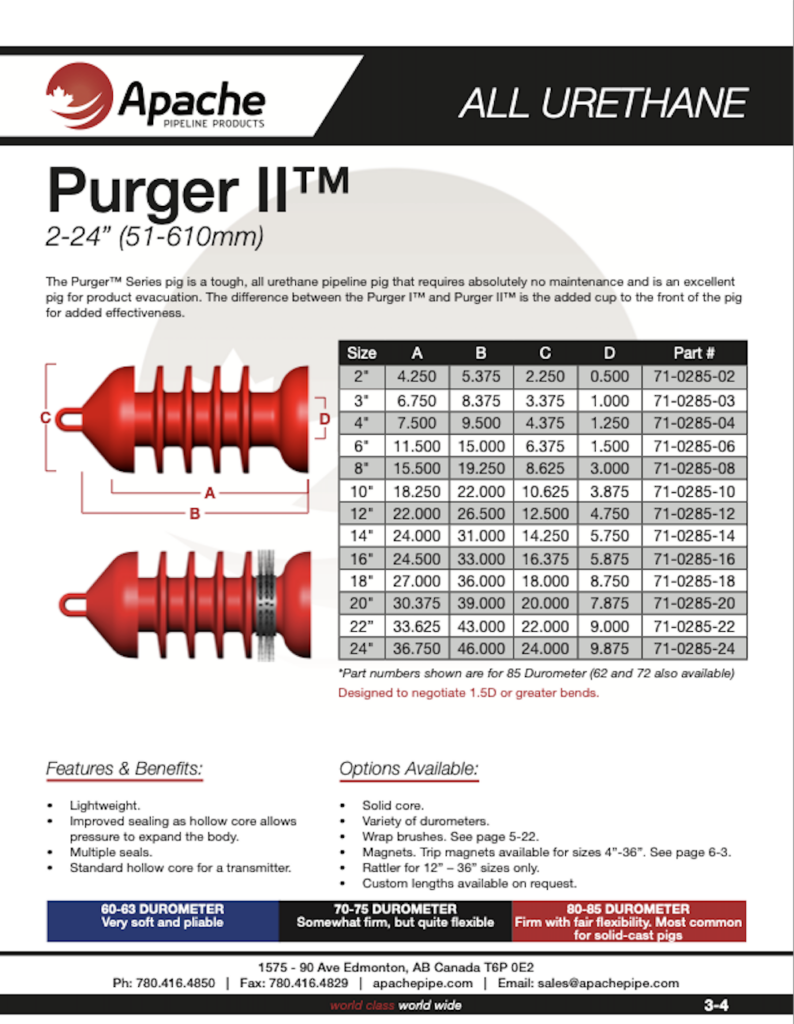

PURGER II™ (2-24”)
The Purger™ Series pig is a tough, all urethane pipeline pig that requires absolutely no maintenance and is an excellent pig for product evacuation. The difference between the Purger I™ and Purger II™ is the added cup to the front of the pig for added effectiveness.
Designed to negotiate 1.5D or greater bends.
| SIZE | A | B | C | D | PART NUMBER |
|---|---|---|---|---|---|
| 2" | 4.250 | 5.375 | 2.250 | 0.500 | 71-0285-02 |
| 3" | 6.750 | 8.375 | 3.375 | 1.000 | 71-0285-03 |
| 4" | 7.500 | 9.500 | 4.375 | 1.250 | 71-0285-04 |
| 6" | 11.500 | 15.000 | 6.375 | 1.500 | 71-0285-06 |
| 8" | 15.500 | 19.250 | 8.625 | 3.000 | 71-0285-08 |
| 10" | 18.250 | 22.000 | 10.625 | 3.875 | 71-0285-10 |
| 12" | 22.000 | 26.500 | 12.500 | 4.750 | 71-0285-12 |
| 14" | 24.000 | 31.000 | 14.250 | 5.750 | 71-0285-14 |
| 16" | 24.500 | 33.000 | 16.375 | 5.875 | 71-0285-16 |
| 18" | 27.000 | 36.000 | 18.000 | 8.750 | 71-0285-18 |
| 20" | 30.375 | 39.000 | 20.000 | 7.875 | 71-0285-20 |
| 22" | 33.625 | 43.000 | 22.000 | 9.000 | 71-0285-22 |
| 24" | 36.750 | 46.000 | 24.000 | 9.875 | 71-0285-24 |
Features & Benefits:
- Lightweight – no metal components.
- Improved sealing as hollow core allows pressure to expand the pig body.
- Excellent for nitrogen purging applications.
- Standard hollow core to accommodate an electronic transmitter.
Options Available:
- Solid core.
- Variety of durometers.
- Circular flange brushes or block brushes in the following types and trim materials:
1. Trim types – flat wire.
2. Trim material – carbon steel, stainless steel or plastic. - Magnets can be used to either collect ferrous and other construction debris, or they can be used to provide a change in magnetic field required by non-intrusive pig signaler detection devices. Trip magnets are available for 4” – 24”.
- Rattler 8” – 24” sizes only.
- Custom lengths available on request.
