EDX-2RB (16-48″)
The EDX-2RB pig is a combination of the popular EDX and EDR configurations and is one of the most aggressive cleaning pig Apache offers. Available in a single body and dual body configuration (to increase cleaning capabilities), the EDX-2RB consists of four sealer discs, two RB brushes, XB brush, and two rows of magnets. The sturdy brushes forcefully scrub away residue and debris to aggressively clean the line before testing, leaving it in pristine condition, ready for assessment.
Designed to negotiate 3D bends, the EDX-2RB moves reliably through piping systems.

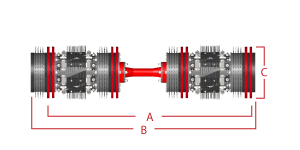

EDX-2RB Dual Body – Small

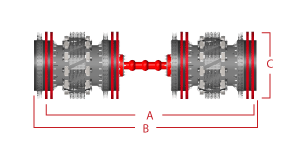

EDX-2RB Dual Body – Large
| Size | A | B | C | Weight |
|---|---|---|---|---|
| Single Body | ||||
| 16" | 22.000" | 28.000" | 15.875" | 185 |
| 18" | 22.000" | 28.000" | 17.875" | 240 |
| 20" | 27.125" | 33.250" | 20.000 | 314 |
| 22" | 30.375" | 36.500" | 22.000 | 369 |
| 24" | 31.000" | 37.250" | 24.125" | 444 |
| 30" | 34.125" | 40.750" | 30.250" | 651 |
| 36" | 39.875" | 47.250" | 36.500" | 949 |
| 42" | 46.000" | 53.750" | 42.125" | 1338 |
| 48" | 51.500" | 60.000" | 48.875" | 1699 |
| Dual Body - Small | ||||
| 16" | 63.260" | 69.260" | 15.875" | 413 |
| 18" | 63.260" | 69.260" | 17.875" | 528 |
| 20" | 73.635" | 79.760" | 20.000" | 678 |
| 22" | 80.135" | 86.260" | 22.000" | 787 |
| 24" | 81.510" | 87.760" | 24.125" | 946 |
| Dual Body - Large | ||||
| 30" | 101.510" | 108.135" | 30.250" | 1434 |
| 36" | 113.260" | 120.635" | 36.500" | 2061 |
| 42" | 125.635" | 133.385" | 42.125" | 2843 |
| 48" | 136.885" | 145.385" | 48.875" | 3616 |
Options Available:
- CARVER discs.
- Aluminum gauge plates in slotted or standard styles.
- Trans-Cavity
- Rattlers
