Desalination Pigs

Desalination: the process of removing salt from seawater

ED

Up to 120″ diameter

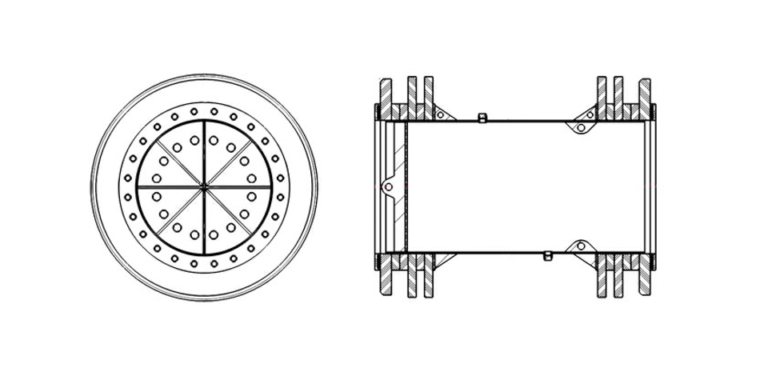

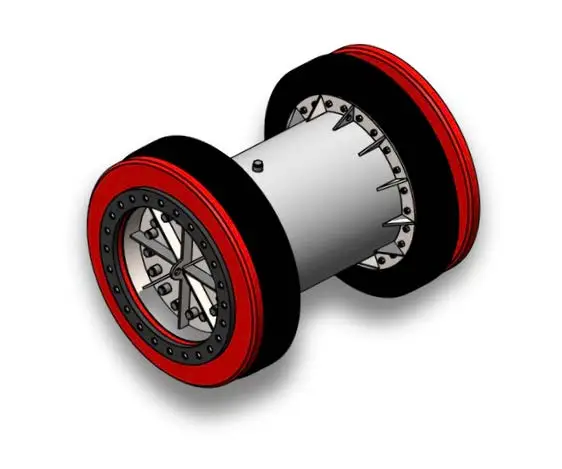

Bi-Directional Mandrel Pig

Features & Benefits

  • Provides an effective seal when separating dissimilar fluids or dewatering
  • Equipped with two guide discs and four sealing discs made from Reliathane, Apache’s special blend of wear resistant polyurethane
  • With repeated use, sealing discs can experience wear and tear. The ED pig will reverse direction, without compromising its sealing capabilities
  • Every ED pig is manufactured with by-pass ports.These ports feature threaded plugs that can be removed
  • Standard bumper noses cushion the pig and help to protect in-line auxiliary equipment

Options Available

  • Front CARVER discs
  • Aluminum Gauge Plates in standard styles or slotted styles
  • Radial and Block Brush options available
  • Magnets to collect metallic debris
  • Transmitter Cavity to accomodate electronic tracking equipment
  • Rattlers for acoustic tracking

MDFC

Up to 120″ diameter

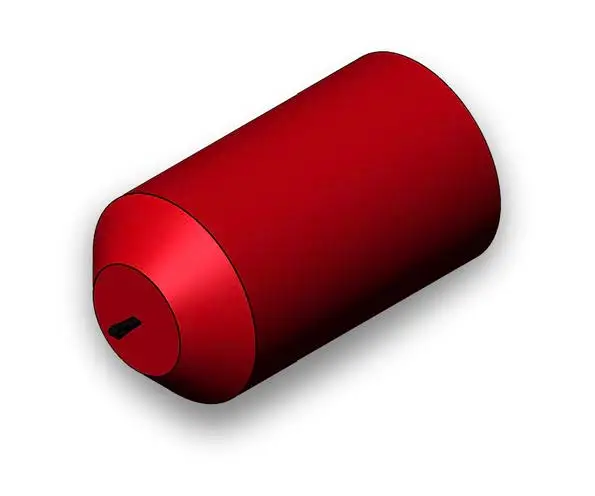

Medium Density Full Coat Foam Pig

Features & Benefits

  • Cleaning
  • Dewatering
  • Works in all piping systems

Options Available

  • Transmitter Cavity to accommodate electronic tracking equipment
  • Custom sizes available
  • Also available in light density (yellow) and hard density (blue)

DOCUMENT DOWNLOADS

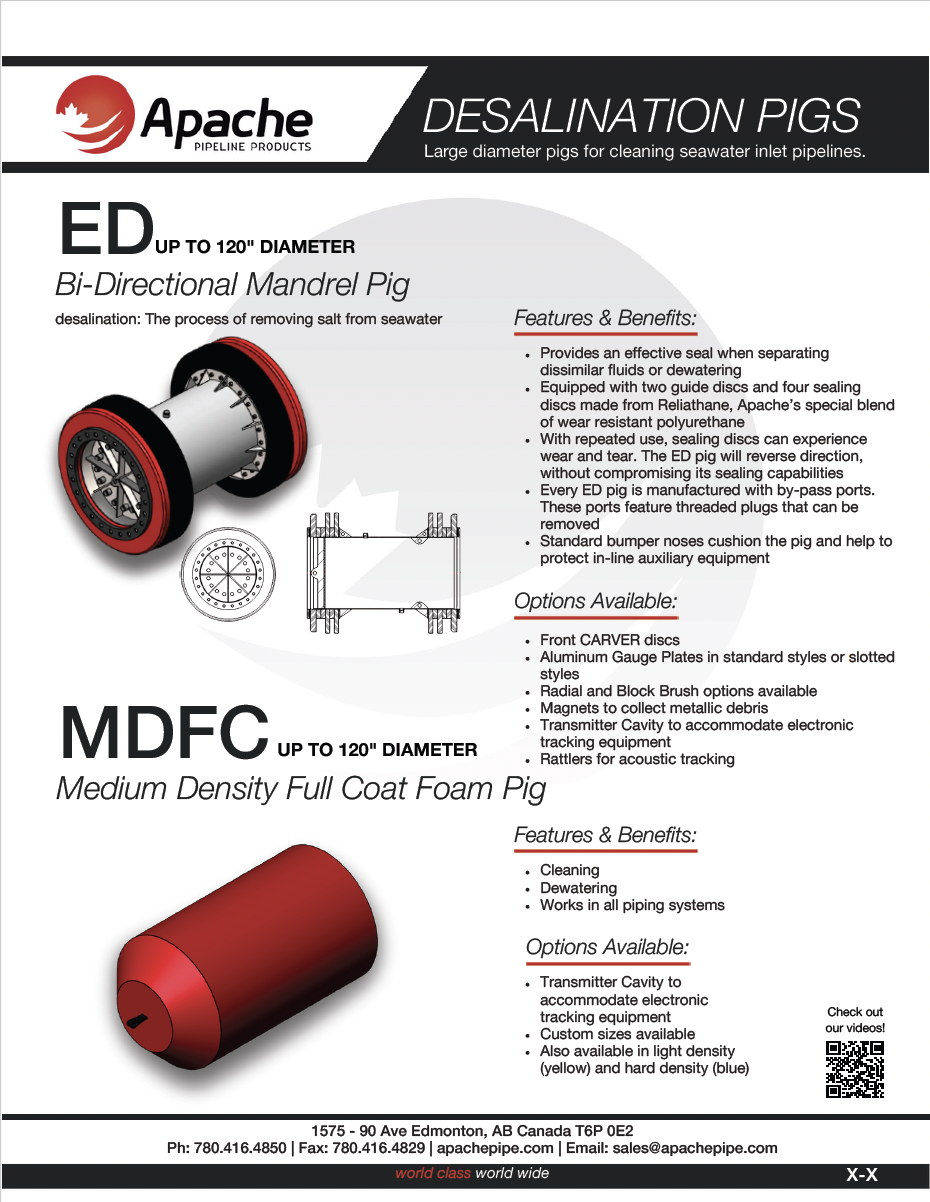

Screenshot of Apache Pipeline Products Desalination pigs spec sheet
Desalination Pig Product Sheet
